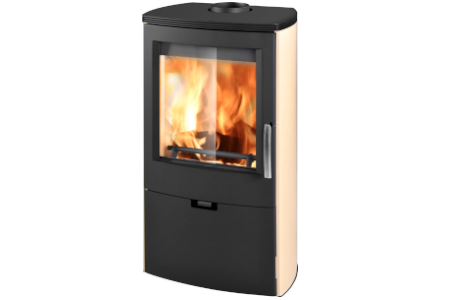

Falun II

Power range: 4 ÷ 12 kW

Heating capacity: 98 ÷ 190 m³

Fuel: wood, lignite briquettes

Dimensions (h,w,d) [mm]: 1040 × 550 × 390

Category:

Description

Color variations black with various side colors: black, wine red, brown, beige, grey, stainless steel
Nominal heat output  8 kW
Regulation range of unit  4 ÷ 12 kW
Heating capacity  98 ÷ 190 m3
Efficiency  82.3 %
Fuel  wood, lignite briquettes
Dimensions (h,w,d) [mm] 1040 × 550 × 390
Flue pipe diameter 150 mm
Net weight  120 kg
Gross weight  105 kg
Pallet place quantity  8 pc
Pallet place weight  880 kg
Pallet place height  253 cm
Flue gas temperature  261 °C
Flue gas flow – wood 6.1 g/s
Flue gas flow – lignite briquettes  10 g/s
Chimney draught  10 Pa



Other details: External air supply, upper pipe connection, CE, §15a B-VG, BlmSchV 1, BlmSchV 2, Regensburg, München, PTC
